Views: 133 Author: Site Editor Publish Time: 2026-04-08 Origin: Site
As global demand for biomass energy continues to grow, industrial pellet producers face mounting pressure to increase output while managing operational risk. For many plant developers, the instinct is to seek the single largest machine available. However, capacity scaling in biomass pellet manufacturing is rarely that straightforward. Shandong BISON MACHINE Co., Ltd., recognized as a Leading China Wood Pellet Machine Factory with over 27 years of industry experience, has developed a modular, multi-unit production approach that addresses this challenge with measurable engineering logic rather than simple size escalation.
The appeal of a single high-capacity machine is understandable. Fewer units mean fewer control points and a simpler footprint. In practice, however, this approach introduces a structural vulnerability that grows more significant as output targets rise.
A single large pellet machine represents a single point of failure. When that unit requires maintenance — whether scheduled or unplanned — the entire production line stops. For facilities running continuous shifts, even a few hours of downtime translates directly into lost output and delayed supply commitments. Furthermore, the theoretical peak capacity of an oversized machine rarely matches its stable daily throughput. Industrial biomass materials vary in moisture content, particle size, and density. A machine sized for peak conditions often runs below optimal load under average feedstock conditions, accelerating uneven wear and reducing energy efficiency.
This gap between nameplate capacity and reliable operational output is a recurring challenge in large-scale biomass projects. It points toward a different way of thinking about production architecture — one built around operational resilience rather than maximum unit size.
The modular approach reverses the single-unit logic. Instead of concentrating capacity in one machine, it distributes production across multiple units running in parallel. This configuration introduces redundancy at the pelletizing stage — the most critical step in the production chain.
If one unit in a parallel array goes offline for blade replacement, die inspection, or bearing maintenance, the remaining units continue operating. Total output drops proportionally but does not stop. This characteristic alone changes the risk profile of large-scale pellet operations significantly.
Beyond redundancy, parallel configurations offer flexibility that single-unit setups cannot match. Plant operators can activate or deactivate individual units to align pelletizing capacity with feedstock availability. During periods of reduced raw material supply or lower market demand, running fewer units at full efficiency outperforms running one large machine at partial load — both in energy terms and in pellet quality consistency. As production targets increase over time, additional units integrate into the existing line without requiring a fundamental redesign of the plant layout or process flow.
The effectiveness of any parallel configuration depends on the individual unit's ability to perform consistently across long operational cycles. This is where BISON's 8th Generation Centrifugal Pellet Machine plays a defining role.
Built on a vertical ring die centrifugal structure, the machine resolves common problems found in traditional flat die and horizontal ring die pellet mills — particularly uneven feeding and accelerated die wear under continuous load. The ring die uses ultra wear-resistant alloy steel with vacuum quenching treatment, ensuring uniform hardness and extended service life. Rollers apply precision surface stacking technology, maintaining dimensional stability over time and keeping pellet diameter consistent across production batches.
The main shaft uses heat-treated premium forged material with reinforced design, rated for doubled load capacity. SKF imported bearings at the main shaft position support stable operation under sustained mechanical stress. An air-cooling system allows 24-hour continuous operation — a practical requirement for plants running multi-shift production schedules.
The XGJ560 model runs at 90 kW to 160 kW with output ranging from 1 to 2.5 tonnes per hour depending on motor configuration. The XGJ850 operates at 250 kW with output of 3 to 4 tonnes per hour. These units serve as the scalable building blocks around which parallel production lines are assembled. Their consistent individual performance is precisely what makes multi-unit configurations predictable at the system level.

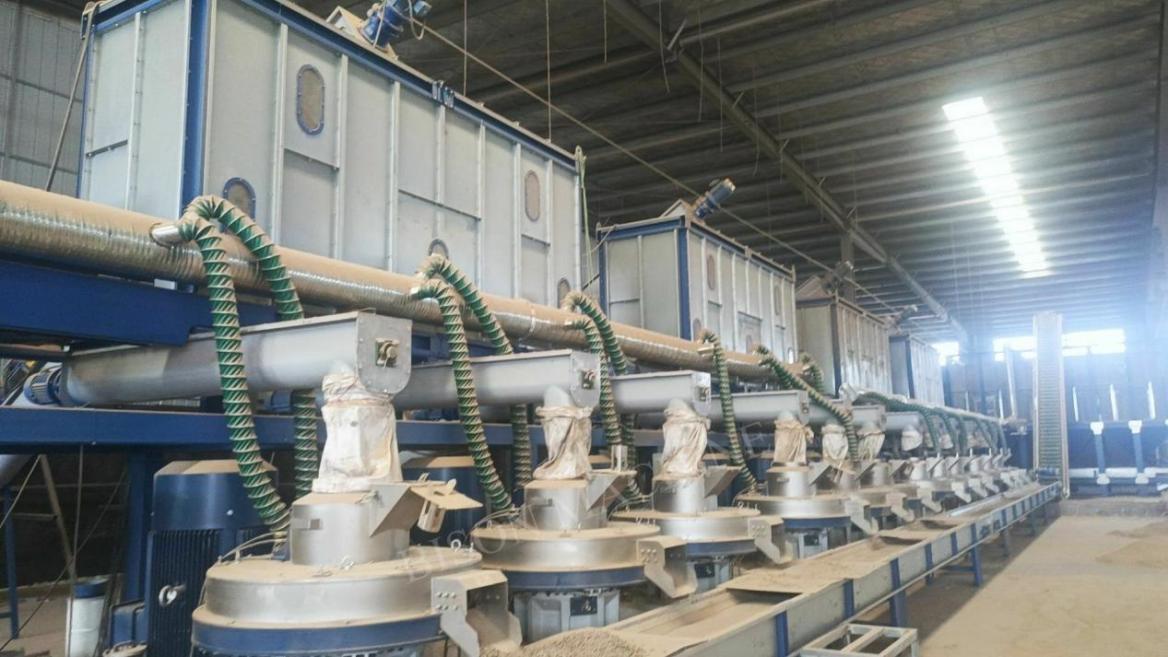

A Proven Case — 18 to 24 TPH Output from 12 Parallel Pellet Machines
Documented project outcomes provide the most concrete evidence for how modular configurations perform at industrial scale. One production line built for mixed wood feedstock processing achieves 18 to 24 tonnes per hour of pellet output using 12 XGJ560 pellet machines running in parallel, supported by two hammer mills for upstream size reduction.
This configuration delivers several operational advantages that go beyond the capacity figure alone. With 12 units active, routine maintenance on any single machine occurs without stopping the line. Operators rotate maintenance windows across units during lower-demand periods, keeping the overall system running continuously. Pellet quality remains consistent because each unit operates at its designed load range rather than at variable partial capacity. The setup also scales directly — adding further units to this architecture follows the same integration logic, without requiring new upstream or downstream equipment to be redesigned from scratch.
The simplicity of the control logic relative to the output scale is worth noting. Each XGJ560 operates as an independent production unit. Operators familiar with one machine apply the same procedures to all twelve. This consistency reduces training requirements and simplifies troubleshooting across the line.
A modular pelletizing core only delivers its full value when the surrounding process chain matches its capacity and operating rhythm. Upstream equipment — wood chippers, hammer mills, and rotary drum dryers — must process and condition material at a rate that keeps all active pellet machines adequately fed without creating inventory bottlenecks between stages.
For wood chips and sawdust feedstocks, the standard process sequence begins with screening to separate oversized material. Oversized pieces proceed through a hammer mill for size reduction; correctly sized material may bypass this step. If incoming moisture exceeds 15%, the material passes through a rotary drum dryer before pelletizing. Conditioned material then feeds into the parallel pelletizing array. Downstream, counterflow coolers stabilize finished pellets before packing systems handle the combined output from all active units. BISON’s engineers design each stage in the chain to match the aggregate throughput of the pelletizing configuration — not the capacity of any single unit.
This systems-level approach to layout design applies across the range of feedstocks that industrial biomass plants process. Material-specific pathways account for the different preparation requirements of round logs, agricultural residues, empty fruit bunches, and mixed waste streams. The process design starts from raw material characteristics and works forward to finished pellet specifications, with equipment selection at each stage driven by what the next stage requires.
Founded in 1998, BISON MACHINE provides a complete one-stop service covering design, manufacturing, logistics, installation, training, and commissioning. This full-scope delivery model connects the engineering logic of modular production design to the practical reality of getting a plant running reliably and keeping it that way.
The service framework begins with raw material analysis and capacity assessment before any equipment is specified. Process flow and plant layout take shape around the client's site conditions and output targets. Manufacturing takes place across four factories covering 96,000 square meters, equipped with advanced CNC machining centers, laser cutting systems, and an independent quality inspection center. Every machine undergoes inspection and performance testing before leaving the facility.
On-site, BISON's technical team guides installation, handles commissioning parameter adjustment, and conducts operator training covering daily procedures, routine maintenance, and fault diagnosis. Post-handover support includes remote technical assistance and spare parts availability — the ongoing infrastructure that sustains production performance across the plant's operational lifetime. Holding ISO 9001, CE, and SGS certifications, alongside 43 proprietary patents, the company brings verifiable quality standards to every stage of this process.
Modular design is not a compromise — it is a deliberate engineering strategy that aligns production capacity with operational resilience. With 500+ biomass pellet production lines delivered across Asia, Europe, South America, and Africa, BISON MACHINE(SHANDONG BISON MACHINE CO., LTD.) offers the technical foundation and project experience to make capacity scaling a controlled, measurable process. Plant developers and investors planning large-scale biomass projects are welcome to submit project parameters for a tailored technical consultation.
For more information on customized biomass solutions and industrial pellet technology, please feel free to contact us.
