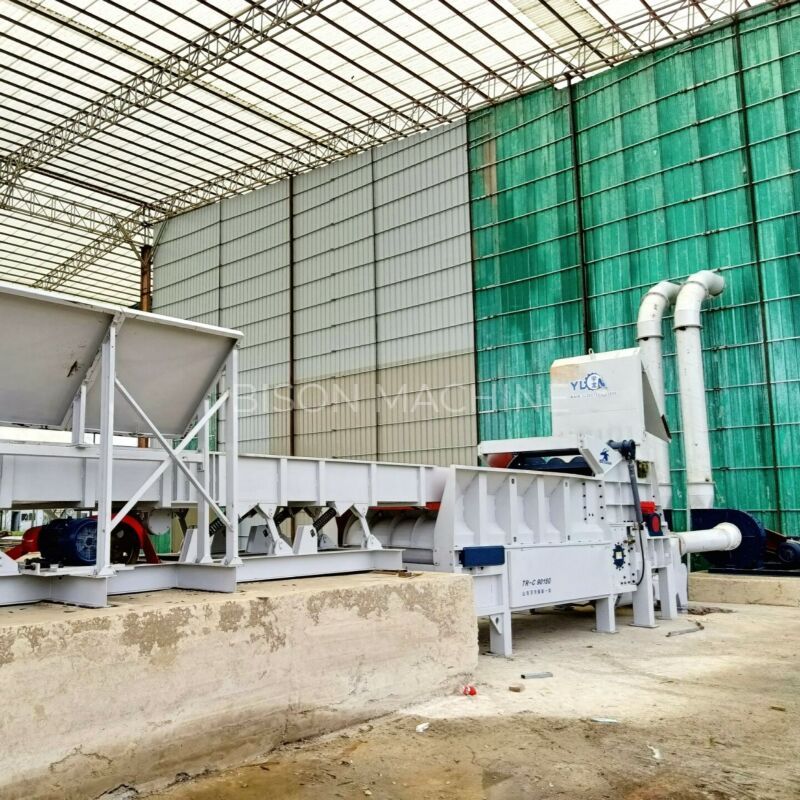

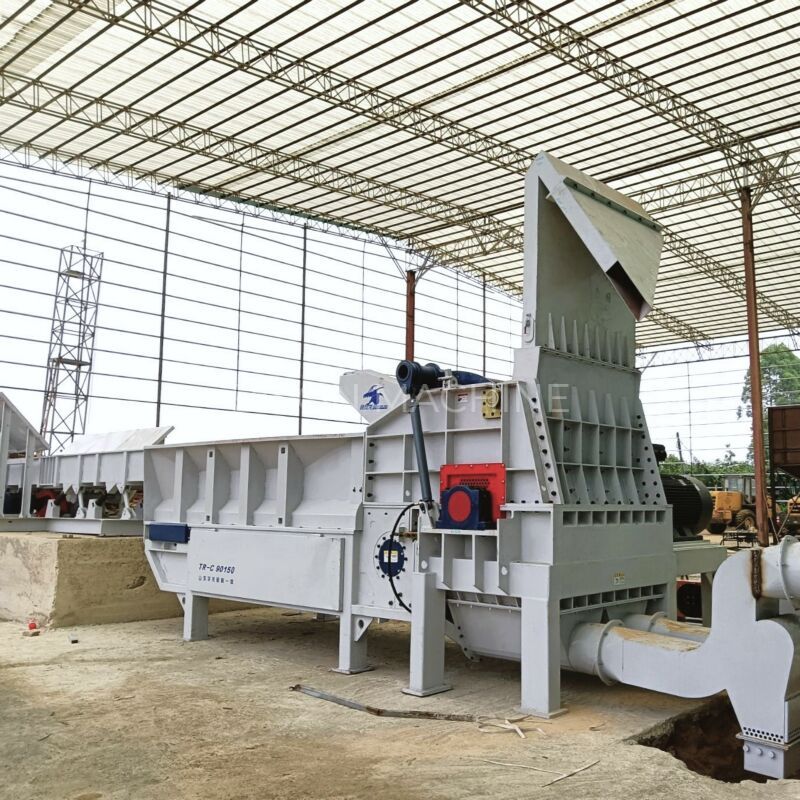

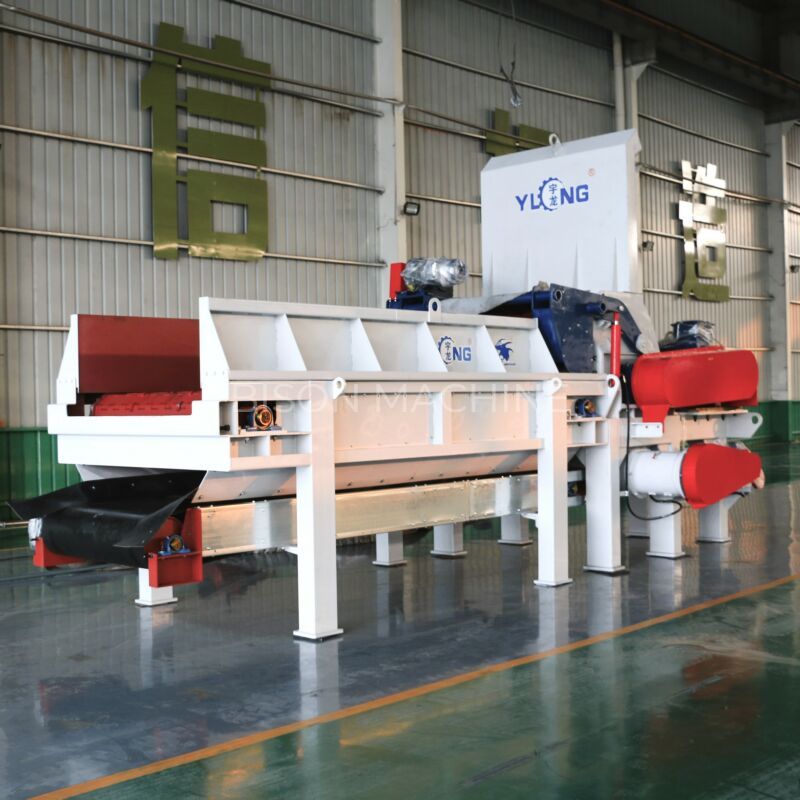

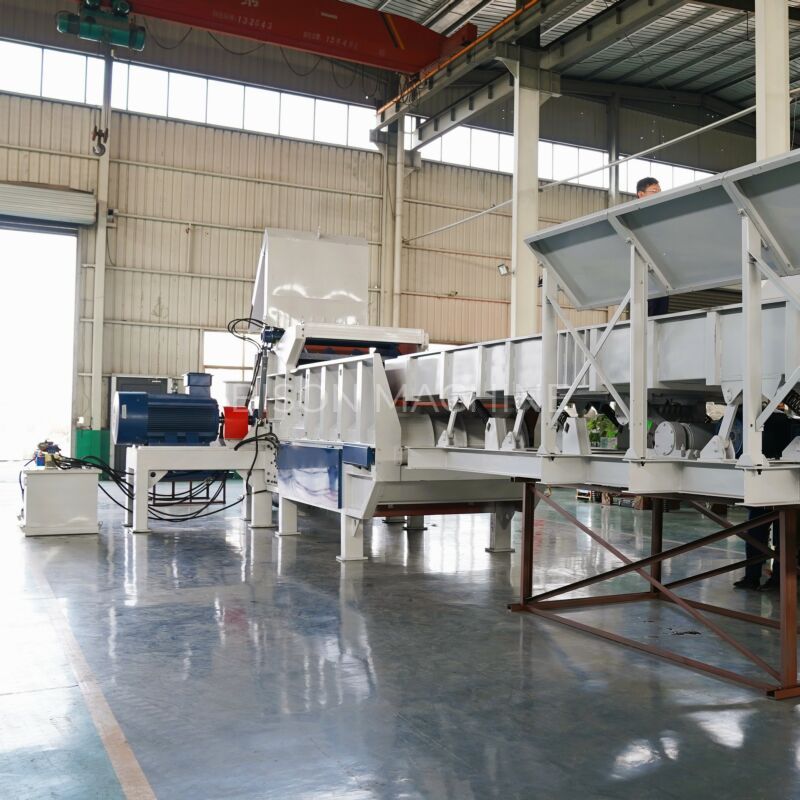

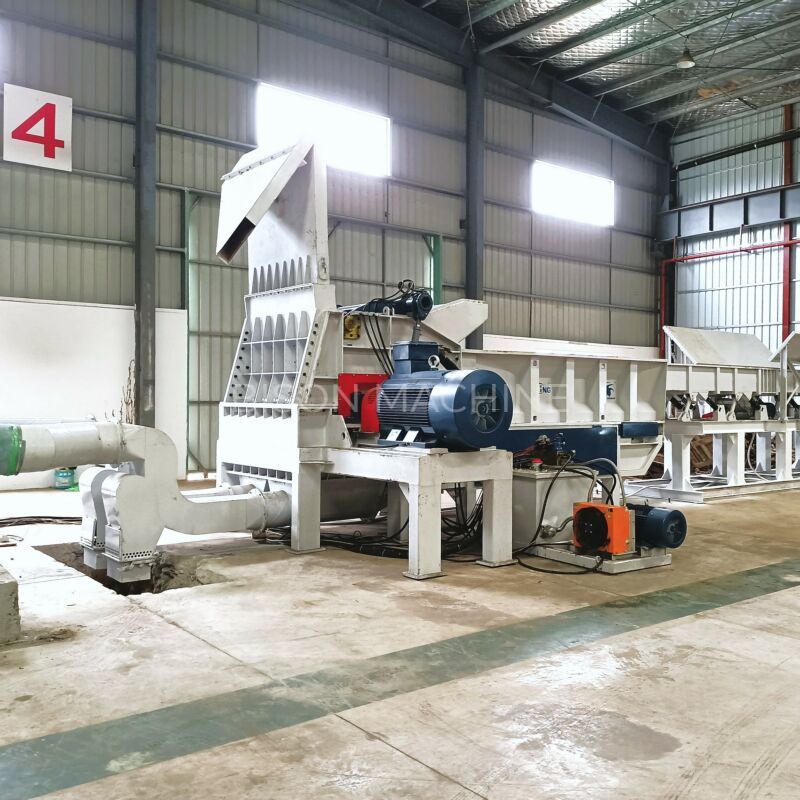

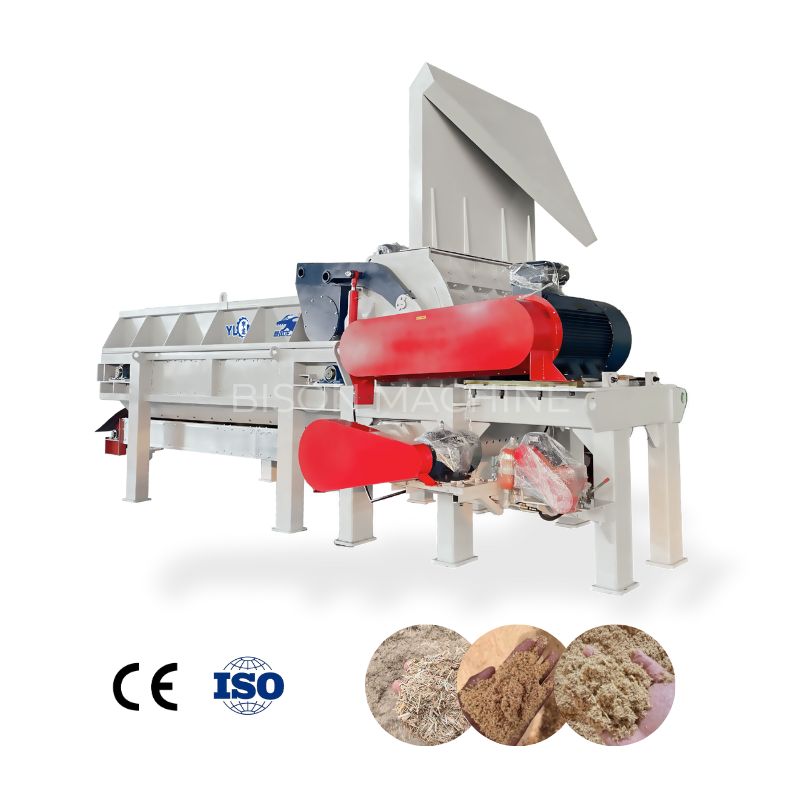

Crushing and Grinding Integrated Machine

The Crushing And Grinding Integrated Machine is designed for one-step processing of complex and contaminated raw materials, producing pellet-ready material without secondary crushing or grinding.

Key Functions:

Crushing, Grinding & Metal Separation in One Process
Intelligent Hydraulic Feeding with Safety Protection
Continuous Output for Pellet Production Lines

Applicable Materials:

Waste wooden pallets, construction formwork, packaging wood and similar materials containing nails or metal fasteners
Agricultural residues such as sugarcane leaves and similar biomass materials containing small stones, sand or soil

Availability:



Inquire

Product Description

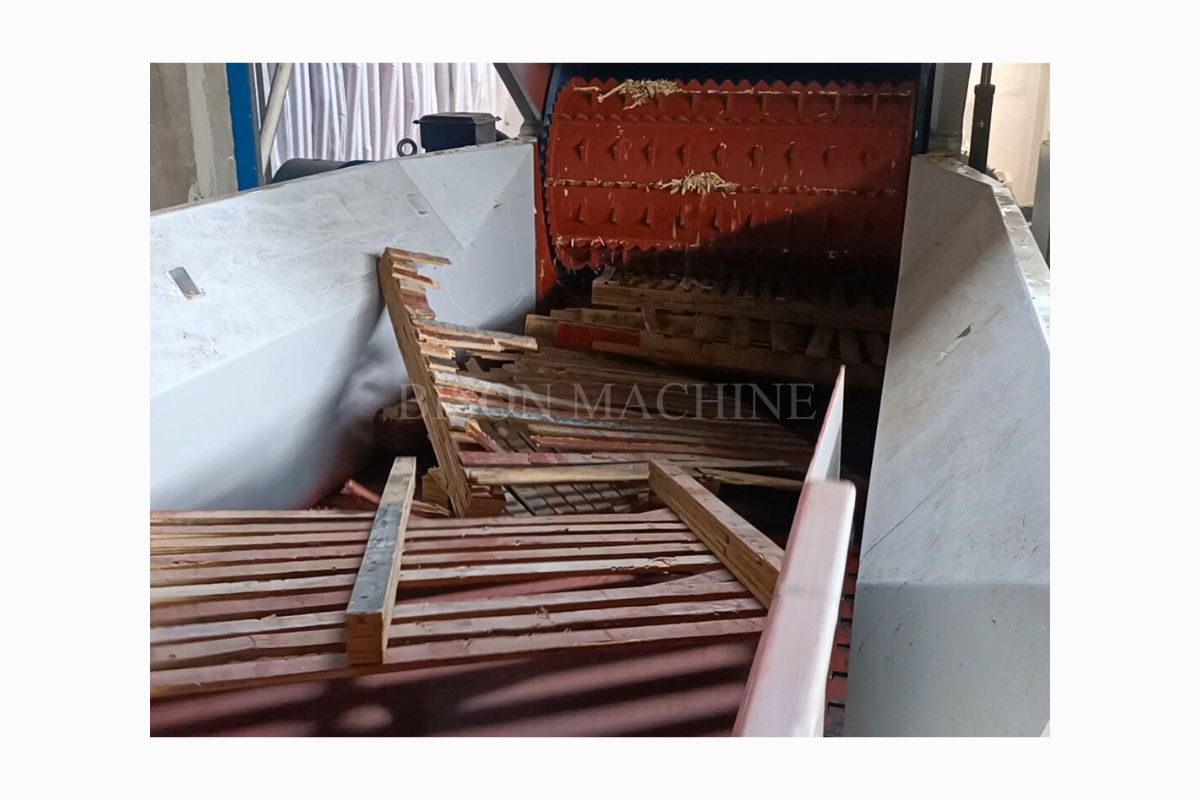

One-Step Processing with Metal Separation

The machine integrates coarse crushing, fine grinding, and metal separation into a single processing unit, enabling contaminated materials to be converted into pellet-ready particle size in one pass.

This reduces intermediate handling, minimizes material loss, and improves overall system efficiency for users dealing with mixed waste materials.

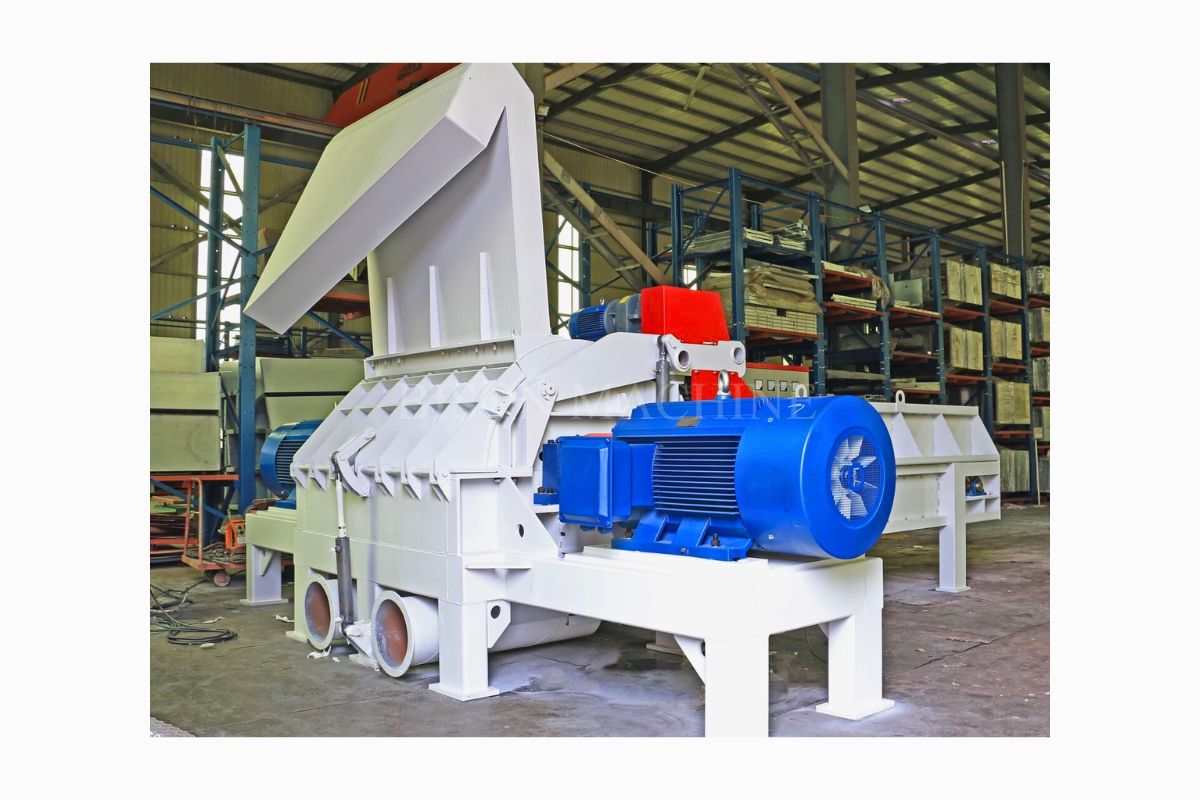

Hydraulic Feeding with Load Protection Control

An intelligently controlled hydraulic feeding system automatically responds to load variation caused by metal pieces, stones, or uneven material density.

Combined with overpressure and overload protection, the system helps maintain stable feeding, protects the main drive components, and reduces the risk of sudden mechanical failure.

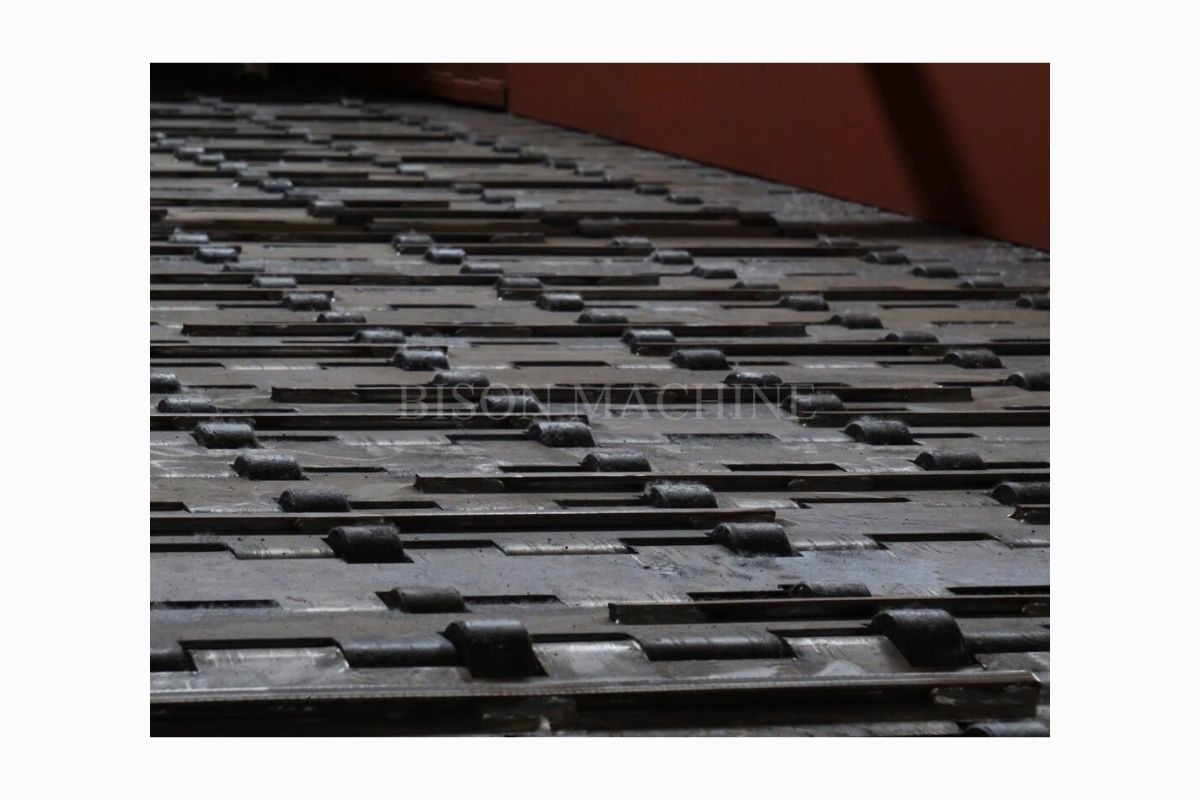

Heavy-Duty Conveying and Maintenance-Oriented Design

The machine adopts a high-strength chain plate conveying system driven by a hydraulic transmission, ensuring stable material supply under high-load conditions.

A hydraulically actuated screen system and a maintenance-friendly spindle structure shorten inspection and replacement time, helping users reduce downtime and keep production running.

Technical Parameter

Hot Model	Power(kw)	Capacity(t/h)
TR-C90150	315+18.5+0.13	5-10
TR-C90150	200*2+18.5+0.13	6-12
TR-C2000	200*2+18.5+0.13	7-14
TR-C2000	250*2+18.5+0.13	10-16
TR-C3000	250*2+45+0.15	15-20
TR-C3000	315*2+45+0.15	18-30
