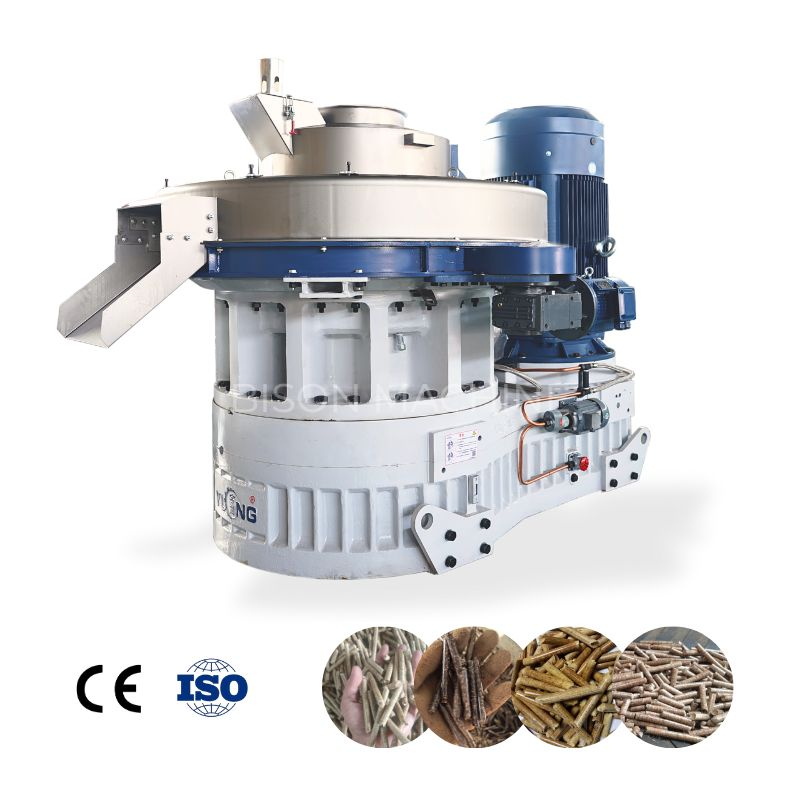

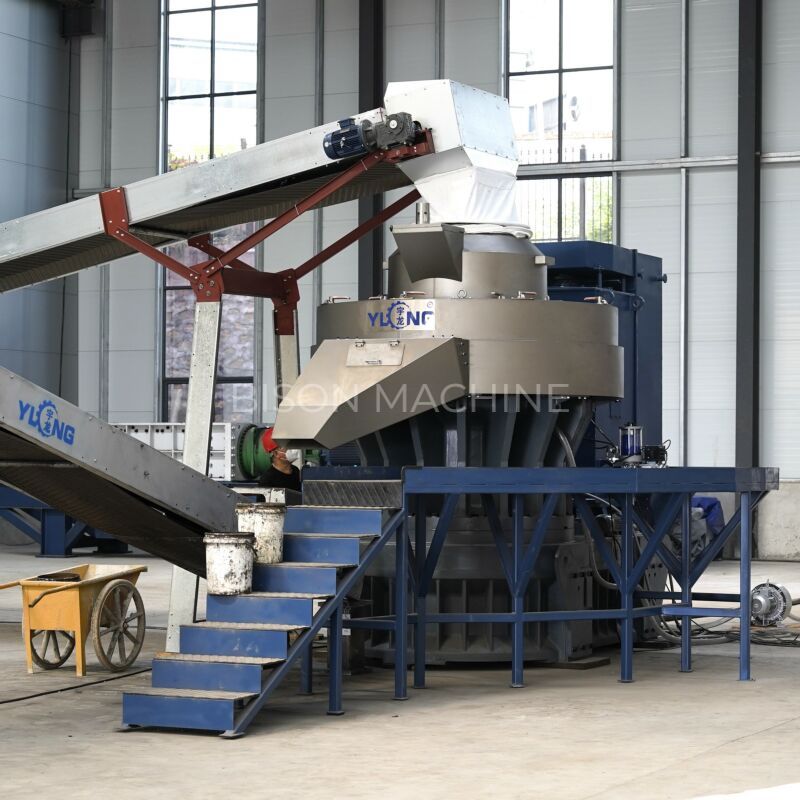

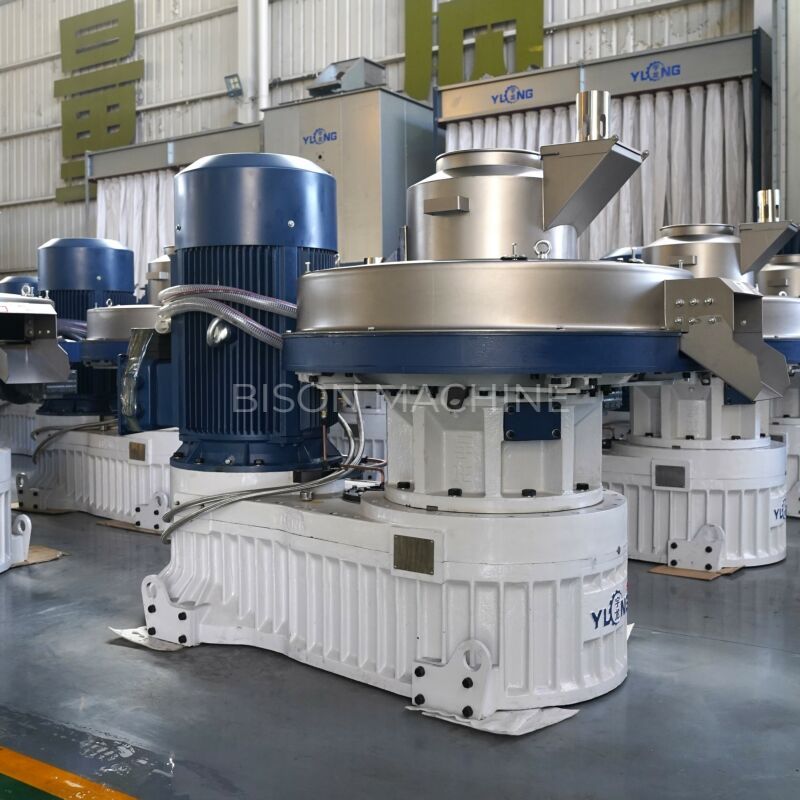

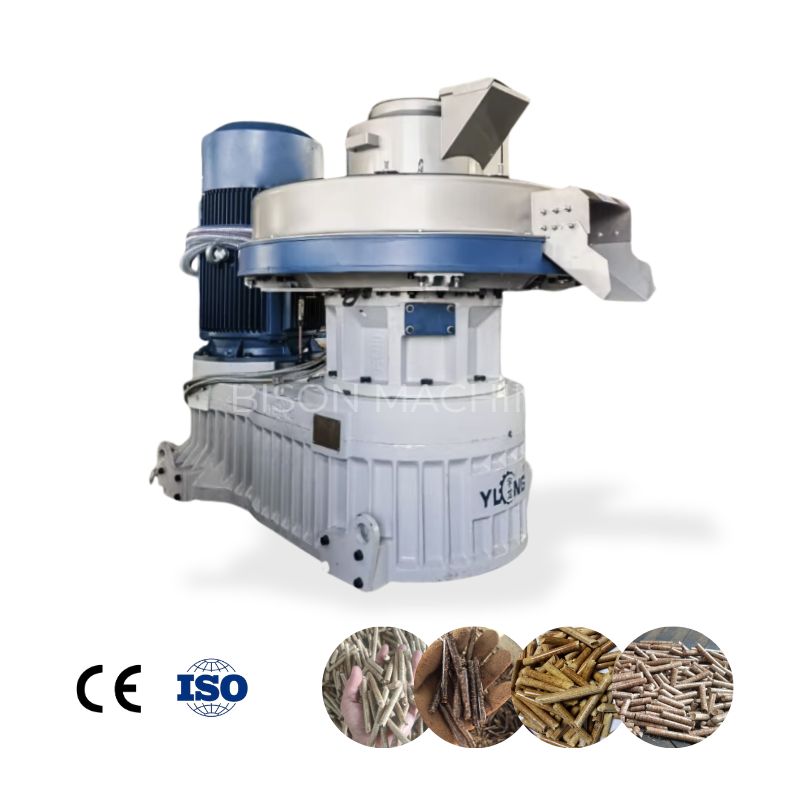

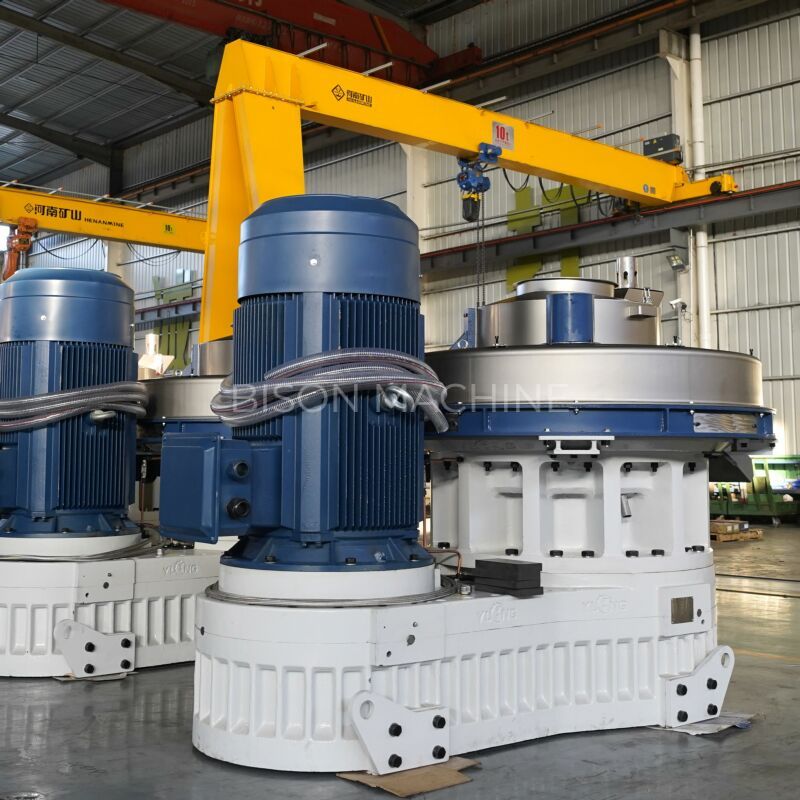

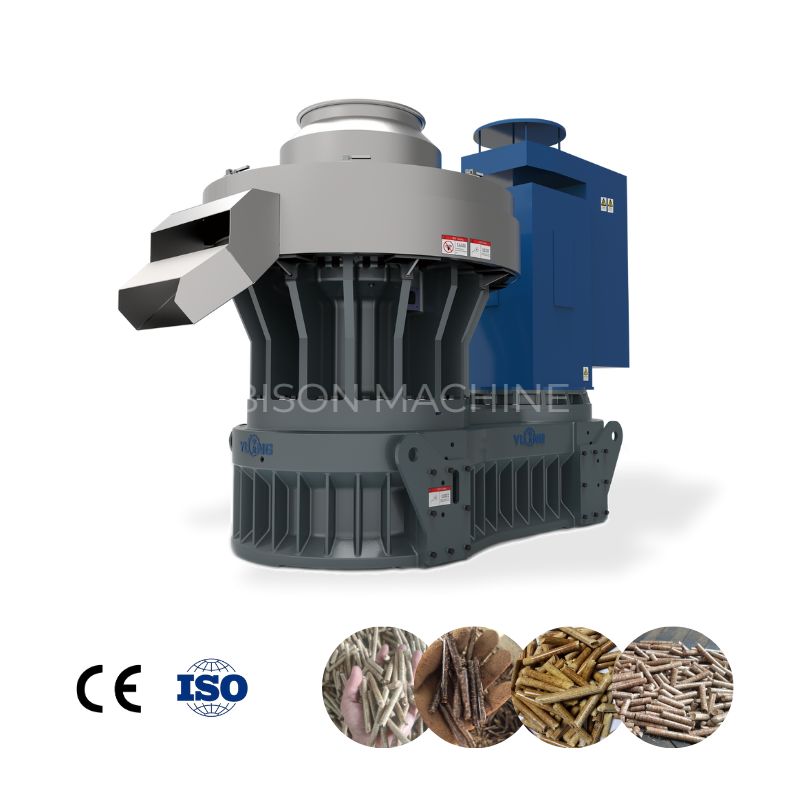

The 8th Generation Centrifugal Pellet Machine is developed for continuous, high-load industrial pellet production, especially for wood and biomass materials with strict requirements on output stability and pellet quality.
Built on a vertical ring die centrifugal structure, this machine solves common issues found in traditional pellet mills—such as uneven feeding, high wear rate, and unstable long-term operation.
Made of ultra wear-resistant alloy steel, processed by vacuum quenching to achieve uniform hardness, high strength, and extended service life.
Rollers
Precision surface stacking and wear-resistant alloy technology are applied, ensuring consistent wear resistance and long-term dimensional stability, perfectly matching the ring die.
Main Shaft
A heat-treated main shaft made from premium forged material, featuring reinforced design to withstand high temperature and friction while delivering doubled load capacity.
Transmission System
Featuring a flexible power input, oil-lubricated multi-stage helical gears, and adjustable bearings without disassembly, this transmission ensures low-noise, low-vibration, continuous heavy-duty operation with minimal maintenance.
Discharging System
An innovative rotary disc discharging system with external transmission design ensures smooth pellet output, avoids high-temperature wear, and delivers long-term stable operation.
Technical Parameter
Model
Power(kw)
Capacity(t/h)
XGJ560
90, 132, 160
1-1.5, 1.5-2, 2-2.5
XGJ850
250
3-4
XGJ1200
800
10-15
*Specifications are for reference only; please refer to sales for the latest models.
